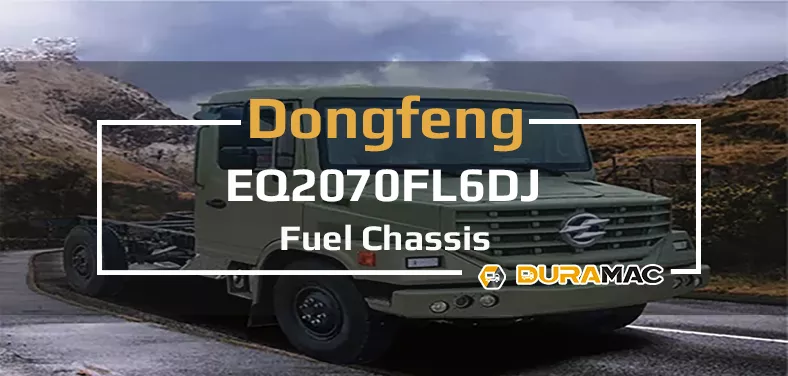

DuraMac Fuel Chassis EQ2070FL6DJ
This chassis is primarily used in specialized applications such as converted RVs, forest fire command vehicles, border patrol vehicles, medical emergency vehicles, and oilfield transport vehicles. Utilizing a renowned domestic brand assembly, it offers reliable performance, strong off-road capabilities, excellent maneuverability, and a strong carrying capacity. It is an ideal transport option for field operations and harsh road conditions.
Technical Specifications
| Size: | 5780*2050*2390mm |
| Wheelbase: | 3310mm |
| Wheel Track(Front/Rear): | 1670mm |
| Front/Rear Suspension: | 950/1520mm |
| Max. Overall Weight: | 7000KG |
| Max. Speed: | 100km/h |
| Passenger Capacity: | 2/3 |
| Rated Power: | 95KW |
| Engine Model: | NAVECO SOFIM8140.43S6 |
| Emission: | CN VI |
| Transmission: | NAVECO 5MT |
- Fuel Chassis Series
- Power System Parameters
- Standard / Optional Configuration
- Chassis Parameters and Configuration
Model |
Size |
Wheelbase |
Max. Overall Weight |
Max. Speed |
Engine Model |
Passenger Capacity |
| EQ2070FL6DJ | 5780*2050*2390mm | 3310mm | 7000KG | 100km/h | NAVECO SOFIM8140.43S6 | 2,3 |
| EQ1150GT6DJ | 5780*2050*2390mm | 3310mm | 14000KG | 110km/h | Cummins D6.7 NS6B 320 | 2,3 |
| EQ2130FT6DJ | 5995*2500*3065mm | 3800+1350mm | 13000KG | 120km/h | D6.7NS6B320 | 2 |
| ——END—— | ||||||
Basic information of DuraMac EQ2070FL6DJ motor |
|||
| Engine Model | SOFIM8140.43S6 | Engine Manufacturer | Nanjing Iveco Automobile Co., Ltd. |
| Position/Fuel | Front-mounted/Diesel | Engine Type | In-line four-cylinder, four-stroke, water-cooled, turbocharged and intercooled, electronically controlled injection |
| Maximum Power (kw/r/min) | 95/3200 | Maximum Torque (N.m/r/min) | 300/1600 |
| Displacement (L) | 2.798 | Emission Standard | National VI |
| Vehicle Announcement and Batch | 352 | Product Grade and Batch Number of People | —— |
| National Environmental Protection Catalogue and Batch | —— | Fuel Consumption Testing Batch | —— |
| ——END—— | |||
Chassis parameters and configuration |
||
| Item | Standard Configuration | Optional Configuration |
| Frame | DL510, 860mm width × 180mm height (variable cross – section) × 5mm thickness | – |
| Transmission | Nanjing Iveco 5MT, integrated transfer case with transmission | – |
| Clutch | φ267 (10.5 inches), single – plate dry type, hydraulically operated | – |
| Front Axle | 2.8T, disc brake | – |
| Rear Axle | 4.2T, drum brake | – |
| Suspension | Double wishbone torsion bar independent type/leaf spring non – independent type -/7 | – |
| Steering | Hydraulic power assist, rack and pinion | – |
| Brake | Hydraulic brake, ABS, self – adjusting arm for rear axle, without exhaust brake | – |
| Fuel Tank | 70L | – |
| Tire | 9.00R16LT 16PR | – |
| Battery Generator | 12V 80Ah/14V 140A + 150A dual motors | – |
| Others | Front and rear differential locks | – |
| ——END—— | ||
Chassis parameters and configuration |
||
| Item | Standard Configuration | Optional Configuration |
| Body Structure | Steel Structure | – |
| Body Mounting and Flipping | Fixed soft cushion mounting, no flipping | – |
| Interior Decoration | Fiberboard + PVC profiled sheet | – |
| Central Control and Door Locks | Central door lock | – |
| Side Windows | Electric lifting, 5mm tempered glass | – |
| Windshield | 7.76mm double – layer laminated glass | – |
| Rearview System | Rearview mirror, wide – angle outer rearview mirror, blind – spot outer rearview mirror | – |
| Air – conditioning System | Cab interior refrigeration air – conditioner | – |
| Heating System | Engine water heating | – |
| Defroster | Instrument panel blower – structured defroster | – |
| Audio – visual System | MP3 player | – |
| Lamps | Front independent low beam (with electric adjustment), front fog lamps, front turn signals, front high beam, side turn signals, rear combination lamps. | – |
| Wiper | Forward – hanging electric wiper | – |
| Seats | 2 – 3 seats, mechanical shock – absorbing driver’s seat | – |
| Paint | Domestic plain paint | – |
| Others | Air horn, mechanical power – off switch, OBD socket, heavy – duty vehicle remote emission terminal T – BOX. | Reverse monitoring system, ETC on – board device |
| ——END—— | ||
