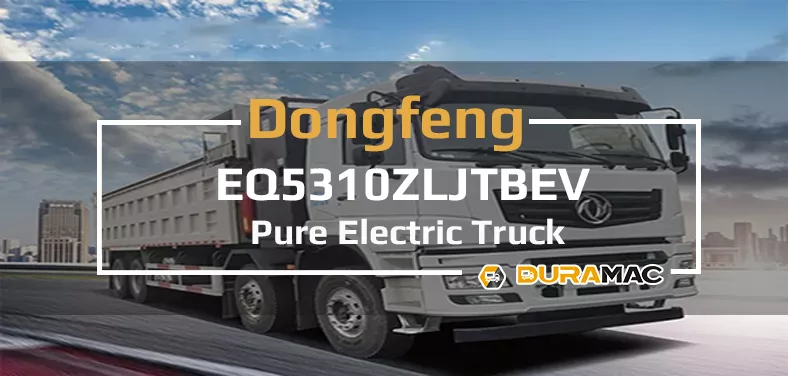

DuraMac Pure Electric Truck EQ5310ZLJTBEV

CATL’s 281.92kWh rapid battery swap system offers long driving range and short recharging times, ensuring sustained high-power operation under all operating conditions.

Dongfeng Special Vehicle’s TZ420XSTKQ001 drive motor (rated 210 hp, peak 360 hp) and electronic control system deliver power that meets all operating requirements, leading the industry.

The use of top-tier domestic or imported electrical connectors ensures sealing and waterproofing at the plug-in terminals, ensuring high reliability and safety of the electrical components.

The DL700 material 8+6mm high-strength frame and a mature and stable suspension system provide wide load expansion and high safety.

The all-new semi-flat-floor body provides excellent interior trafficability and convenient rest areas.

Advantages of EQ5310ZLJTBEV

  • Equipped with a 248kW rated-power motor, it delivers robust performance while boasting a 300km driving range, ensuring efficient operation for heavy-duty and medium-to-long-haul logistics tasks.

  • Boasting a maximum overall weight of 31000kg, paired with HanDe 9.5T front axle and 16T middle/rear axles, it ensures exceptional load-bearing stability under extreme heavy-duty operations.

  • Features optimized front/rear suspension (1500/1950mm) and TBT TS-0425C transmission, providing smooth shifting, precise control, and enhanced ride comfort across diverse road conditions.

  • With a wheelbase of 1950+4750+1400mm and overall size of 11750*2550*3430mm, it offers excellent driving stability at a maximum speed of 85km/h, adapting to various heavy-duty transport scenarios.

Technical Specifications

Size: 11750*2550*3430mm
Wheelbase: 1950+4750+1400mm
Wheel Track(Front/Rear): 2036/1860mm
Front/Rear Suspension: 1500/1950mm
Max. Overall Weight: 31000kg
Max. Speed: 85km/h
Passenger Capacity: 2
Rated Power: 248kW
Range: 300km
Front Axle: HanDe 9.5T axle
Middle/Rear Axle: HanDe 16T axle
Transmission: TBT TS-0425C

coming soon

coming soon

coming soon

DuraMac

DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.

FIND MORE

Fast Gear

The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.

FIND MORE

EV Truck

Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.

FIND MORE

DANA Axle

Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.

FIND MORE

Datong Gear

The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.

FIND MORE

Crane Trucks

The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.

FIND MORE

Crane Trucks

The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.

FIND MORE

Crane Trucks

The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.

FIND MORE

Model

Size

Wheelbase

Max. Overall Weight

Max. Speed

Rated Power

Passenger Capacity

EQ5310ZLJTBEV 11750*2550*3430mm 1950+4750+1400mm 31000 kg 85 km/h 248 kW 2
EQ1180GTEV 8410*2550*3245/3300/3400mm 4500mm 11500 kg 89 km/h 120/185 kW 2,3
EQ1310GLEVJ 9040*2550*3400mm 1700+3450+1350mm 31000 kg 85 km/h 240 kW 2,3
EQ1310GLEVJ1 9310*2535*3150/3100mm 1850+3200+1350mm 31000 kg 85 km/h 280 kW 2,3
EQ1310GTBEV 11900*2550*3000mm 1850+4800+1350mm 31000 kg 85 km/h 280 kW 2
EQ3120TTBEV 6550/6670*6870*2350*2400*2670mm 3900/3800mm 11995 kg 85 km/h N/A 2,3
EQ3180GTBEV1 6450/6550/6850/6750*2360/2850/2450/2500mm 3750mm 11995 kg 85 km/h 100 kW 2,3
DFD4250GLBEV 7590*2559*3330mm 3800+1350mm 25000 kg 85 km/h 215 kW 2
EQ4250GLBEV1 7590*2559*3330mm 3800+1350mm 25000 kg 85 km/h 215 kW 2
EQ4251GTBEV 7490*2550*3350/3410mm 3800+1350mm 25000 kg 85 km/h 220 kW 2
EQ4251GTBEV2 7660*2550*2980mm 4050+1350mm 25000 kg 85 km/h 270 kW 2
EQ4251GTBEV1 7410*2550*3250mm 3800+1350mm 25000 kg 85 km/h 315 kW 2
EQ5250ZLJTBEV 8630*2550*3280mm 2050+3100mm 25000 kg 89 km/h 215 kW 2
——END——

Basic information of DuraMac EQ5250ZLJTBEV motor

Motor Model TZ420XSTKQ001 Motor Manufacturer Dongfeng Teqi (Shiyan) Bus Co., Ltd.
Position/Fuel Type Mid-mounted/Battery Swap Type Motor Type Permanent Magnet Synchronous Motor
Rated/Peak Power of Motor (kw) 215/360 Rated/Peak Torque (N.m) 1200/2400
Total Battery Capacity (kWh) 281.92 CATL (CATL Battery Swap Mechanism) Driving Range (40km/h Constant Speed Method) 285Km
Vehicle Announcement and Batch —— Recommendation/Exemption Catalogue ——
National Subsidy Level Amount (10,000 yuan) ——
——END——

Standard / Optional Configuration

Item Standard Configuration Optional Configuration
Frame DL710, 860mm width × 300mm height × thickness (8 + 4)
Front/Second Axle Dongfeng Dana Axle 6.5T, Drum Type Optional Hande 5.5T, Drum Brake
Rear Axle Dongfeng Dana Axle 13T, Drum Type Optional Hande 425X Axle, Drum Brake
Transmission AMT6
Suspension Multi – leaf spring 9/9/10 + 8
Steering Hydraulic Power Steering
Brake Air Brake, Dryer, Condenser, ABS, Self – adjusting Arm, Wear Alarm
Tire 11.00R20 18PR (No Spare Tire)
Air Compressor Oil – free Piston Air Compressor
Others Electronic Fan, Power Take – off, CATL Battery Swap Mechanism
——END——

Chassis parameters and configuration

Item Standard Configuration Optional Configuration
Body Structure T712 Fully – welded steel heavy – duty truck single – berth standard – roof cab
Body Suspension Tilt Semi – floating front and rear suspension with mechanical shock absorption, electric – hydraulic tilt Full – floating rear suspension with airbag shock absorption
Interior Decoration Laminate composite material
Central Control and Door Locks Central door locks
Side Windows Electric lifting
Windshield Front windshield laminated glass
Rearview System Inner rearview mirror, steel – frame asymmetric manual rod – type rearview mirror
Air – conditioning System Cab heating and cooling air – conditioning Dongfeng Paien roof – mounted air – conditioning/Cab air – conditioning
Heating System Cab heating and cooling air – conditioning
Defroster Instrument panel blower structure for defrosting
Audio – visual System MP3 player
Lamps Combined headlamps (with light adjustment device)
Wiper Forward – sweeping electric wiper
Seats 2 – 3 seats, airbag – suspended driver’s seat
Paint Domestic plain paint Metallic paint
Others Air horn, mechanical power – off switch, OBD socket, new energy remote terminal T – BOX, Beidou satellite positioning travel recorder with printing function Reversing monitoring system, ETC on – board device
——END——

Loading System

Cargo Compartment Dimensions 7600/7800*2350*900, 1200, 1500 Cargo Compartment Type 4 cross grids on the side and 6 on the bottom
Oi Cylinder Front – top type oil cylinder (diameterφ200mm)
——END——

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
