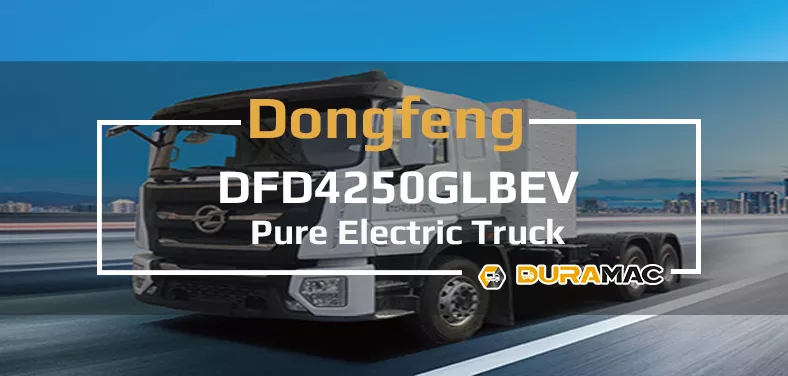

DuraMac Pure Electric Truck DFD4250GLBEV

The vehicle comes standard with a 274.68 kW/h power battery from Guangzhou Juwan Technology Research Co., Ltd., achieving a range of over 200 km under comprehensive operating conditions.

The standard single-charger charging system provides 580A, while the dual-charger system provides 1160A. With dual-chargers, the battery level can be charged from 20% to 80% in just 20 minutes, significantly improving vehicle efficiency for both long and short distances.This vehicle boasts industry-leading operating efficiency.

The vehicle’s electrical connectors are all top-tier domestic or imported, ensuring a sealed and waterproof connection, enhancing the reliability and safety of the electrical components.

The vehicle utilizes a high-strength DL710 frame (8+4mm thick) and a mature and stable suspension system, offering wide load capacity and high safety.

Advantages of DFD4250GLBEV

  • Boasting a maximum total mass of 25000kg and a curb weight of 11600kg, it delivers reliable heavy-duty performance for demanding logistics operations.

  • Featuring 23°/37° approach/departure angles and front/rear overhang of 1530/810mm, it offers strong off-road capability and flexible maneuvering on complex road conditions.

  • With a wheelbase of 3900+1350mm and track width of 2036/1860/1860mm, it ensures outstanding driving stability at a maximum speed of 85km/h, ideal for long-haul transport.

  • Adopting a size of 7590*2559*3330mm, it balances cargo space and maneuverability, adapting to diverse heavy-duty transport and special operation scenarios.

Technical Specifications

Size: 7590 * 2559 * 3330mm
Wheelbase: 3900+1350mm
Front Overhang/Rear Overhang: 1530/810mm
Approach/Departure Angle: 23°/37°
Curb Weight: 11600kg
Maximum Total Mass: 25000kg
Rated Capacity: 2
Maximum Speed: 85km/h
Track Width: 2036/1860/1860mm

coming soon

coming soon

coming soon

DuraMac

DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.

FIND MORE

Fast Gear

The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.

FIND MORE

EV Truck

Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.

FIND MORE

DANA Axle

Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.

FIND MORE

Datong Gear

The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.

FIND MORE

Crane Trucks

The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.

FIND MORE

Crane Trucks

The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.

FIND MORE

Crane Trucks

The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.

FIND MORE

Model

Size

Wheelbase

Max. Overall Weight

Max. Speed

Rated Power

Passenger Capacity

DFD4250GLBEV 7590*2559*3330mm 3800+1350mm 25000 kg 85 km/h 215 kW 2
EQ4250GLBEV1 7590*2559*3330mm 3800+1350mm 25000 kg 85 km/h 215 kW 2
EQ4251GTBEV 7490*2550*3350/3410mm 3800+1350mm 25000 kg 85 km/h 220 kW 2
EQ4251GTBEV2 7660*2550*2980mm 4050+1350mm 25000 kg 85 km/h 270 kW 2
EQ4251GTBEV1 7410*2550*3250mm 3800+1350mm 25000 kg 85 km/h 315 kW 2
EQ1310GTBEV 11900*2550*3000mm 1850+4800+1350mm 31000 kg 85 km/h 280 kW 2
EQ3180GTBEV1 6450/6550/6850/6750*2360/2850/2450/2500mm 3750mm 11995 kg 85 km/h 100 kW 2,3
EQ3120TTBEV 6550/6670*6870*2350*2400*2670mm 3900/3800mm 11995 kg 85 km/h N/A 2,3
EQ1310GLEVJ1 9310*2535*3150/3100mm 1850+3200+1350mm 31000 kg 85 km/h 280 kW 2,3
EQ1310GLEVJ 9040*2550*3400mm 1700+3450+1350mm 31000 kg 85 km/h 240 kW 2,3
EQ1180GTEV 8410*2550*3245/3300/3400mm 4500mm 11500 kg 89 km/h 120/185 kW 2,3
EQ5250ZLJTBEV 8630*2550*3280mm 2050+3100mm 25000 kg 89 km/h 215 kW 2
EQ5310ZLJTBEV 11750*2550*3430mm 1950+4750+1400mm 31000 kg 85 km/h 248 kW 2
——END——

Basic information of DuraMac DFD4520GLBEV motor

Motor Model TZ420XSTKQ001 Motor Manufacturer Dongfeng Teqi (Shiyan) Bus Co., Ltd
Position/Fuel Type Mid-mounted/Battery Swapping Type Motor Type Permanent Magnet Synchronous Motor
Rated/Peak Power of Motor (kw) 215/360 Rated/Peak Torque (N.m) 1200/2400
Total Battery Capacity (kwh) 274.68 Guangzhou Juwan Technology Research Driving Range (40km/h Constant Speed Method) 200km
Vehicle Announcement and Batch 367 Recommendation/Exemption Catalogue —–
National Subsidy Grade Amount (10,000 yuan) —–
——END——

Chassis parameters and configuration

Item Standard Configuration Optional Configuration
Frame DL710940 becomes 860 width × 300 height × thickness (8+4)
Front Axle Dongfeng Dana Axle 6.5T Hande Axle 6.5T (with waterproof wheel end)
Middle/Rear Axle Dongfeng Dana Axle 13T Hande Axle 13T (for new energy vehicles, with main reduction and waterproof wheel end)
Transmission Fast 6E240
Suspension Multi – leaf spring 9/10, rear balanced suspension structure
Steering Hydraulic power steering
Braking Air brake, dryer, condenser, ESC, automatic adjusting arm, wear alarm, ADAS
Tire 12R22.5 – 18PR (no spare tire) 12.00R20 18PR; 11.00R20 18PR
Air Compressor Oil – free piston
Others Electronic fan, power take – off
——END——

Chassis Parameters and Configuration

Item Standard Configuration Optional Configuration
Body Structure T719 Half – cab with Standard Roof
Body Suspension and Tilt Full – floating front suspension with mechanical shock absorption, full – floating rear suspension with airbag shock absorption, electric hydraulic tilt
Interior Trim Laminate Composite Material
Central Control and Door Locks Central Control Door Locks
Side Windows Electric Lifting
Windshield Front Windshield with Interlayer Glue
Rearview System Inner Rearview Mirror, Steel – framed Rod – type Rearview Mirror
Air – conditioning System Cab Heating and Cooling Air – conditioning
Heating System Cab Heating and Cooling Air – conditioning
Defroster Instrument Panel Blower – structured Defrosting
Audio – visual System MP3 Player
Lamps Combined Headlamps (with Light Adjustment Device)
Windshield Wipers Forward – wiping Electric Windshield Wipers
Seats 2 Seats, Driver’s Seat with Airbag Shock Absorption
Paint Domestic Plain Color Paint Metallic Paint
Others Air Horn, Mechanical Power – off Switch, OBD Socket, Heavy – duty Vehicle Remote Terminal T – BOX, Beidou Satellite Positioning Driving Recorder with Printing Function, Power Battery Thermal Management System Reversing Monitoring System, ETC On – board Device
——END——

Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
