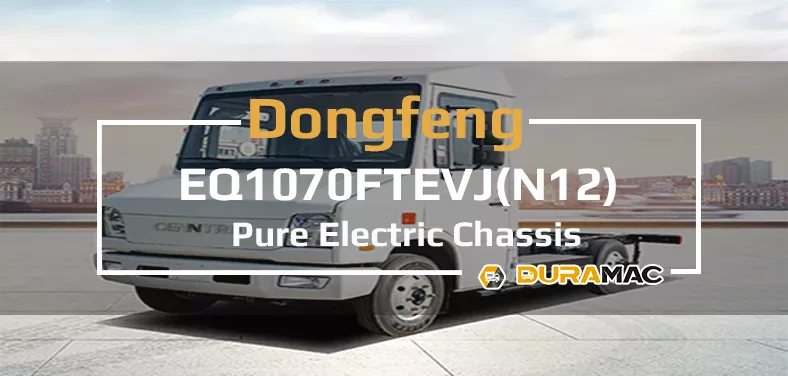

DuraMac Pure Electric Chassis EQ1070FTEVJ(N12)
The vehicle uses a US-standard fast-charging port.
The cab air conditioner is a mature commercial vehicle air conditioner with enhanced cooling and heating performance, compatible with US-standard refrigerants.
The long-nose cab features a flat floor structure with no raised areas, providing ample space for easy access from the driver’s seat to the front passenger seat. Standard plus/minus driver seats are included, along with space for a toolbox.
Technical Specifications
| Size: | 5998*2060*2730mm |
| Wheelbase: | 3650mm |
| Wheel Track(Front/Rear): | 1750/1600mm |
| Front/Rear Suspension: | 850/149mm |
| Max. Overall Weight: | 6550KG |
| Max. Speed: | 60km/h |
| Passenger Capacity: | 2 |
| Rated Power: | 50KW |
| Range: | 200km |
| Front Axle: | Huqiao 2.3T axle |
| Middle/Rear Axle: | Huqiao 4.5T axle |
| Transmission: | YueBoo AMT |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
- Pure Electric Chassis Series
- New Energy System
- Charging Method
- Standard / Optional Configuration
- Chassis Parameters and Configuration
- Security Configuration
- Car Box
Model |
Size |
Wheelbase |
Max. Overall Weight |
Max. Speed |
Rated Power |
Passenger Capacity |
| EQ1070FTEVJ(N12) | 5998 * 2060 * 2730 mm | 3650mm | 6550KG | 60 km/h | 50 KW | 2 |
| EQ1310GLEVJ | 9040 * 2550 * 3400 mm | 1700+3450+1350mm | 31000KG | 85 km/h | 240 KW | 2 |
| EQ4250GLBEV1 | 7590 * 2559 * 3330 mm | 3900+1350mm | 25000KG | 85 km/h | 215 KW | 2 |
| EQ1180EVJ1 | 8350 * 2430 * 3400/3300/3245/3185 mm | 4500mm | 18000KG | 89 km/h | 100 KW | 2,3 |
| DFD4250GLBEV | 7590 * 2559 * 3330 mm | 3900+1350mm | 25000KG | 85 km/h | 215 KW | 2 |
| ——END—— | ||||||
New Energy System |
|||
| Motor Model | TZ230XS – YBM406 | Motor Manufacturer | Nanjing Yuebo |
| Position/Fuel Type | Mid-mounted/Lithium Iron Phosphate | Motor Type | Permanent Magnet Synchronous |
| Rated/Peak Power of Motor | 50/85 | Peak Torque (N.m) | 320 |
| Total Battery Capacity (kWh) | 80.64 (Dongfeng Lishen, Voltage Platform 537V) | Driving Range (Constant Speed Method) (km) | ≥200 |
| ——END—— | |||
Charging Method |
|||
| Charging Mode | Fast charging; DC | Plug Standard | American Standard |
| Charging Controller (EVCC) | Central Control Unit Assembly – including hardware | On – board Slow Charging | None |
| Charging Time (Fast Charging) | 1.5h | ||
| ——END—— | |||
Chassis parameters and configuration |
||
| Item | Standard Configuration | Remarks |
| Load – bearing Type | Semi – bearing | – |
| AMT System | Yuebo gearbox, 1st gear 3.77, 2nd gear 1.44 | – |
| Front Axle | Huqiao 2.3T | – |
| Rear Axle | Huqiao 4.5T, Main reduction ratio: 5.375 | – |
| Suspension | Front 9/Rear 11 | – |
| Shock Absorber | ZF, Telescopic shock absorber | – |
| Steering | Steering wheel, Mechanical type (Hydraulic power assistance) | – |
| Brake | Front disc type/Rear drum type | – |
| Braking | Air brake, Spring energy storage braking; EPB electronic parking | Brake pipes and adapters are marked with DOT certification mark |
| Wheels | Tire 7.00R16LT 12PR, Aluminum alloy rim 5.5P*16 | Outer tire is canceled, rim is marked with DOT certification mark |
| Others | Rear suspension extended by 400mm – 600mm (extension frame) | The text, sound, nameplate, etc. of the whole vehicle must be in English version (except for mold parts that cannot be changed to Chinese) |
| ——END—— | ||
Chassis parameters and configuration |
||
| Item | Standard Configuration | Optional Configuration |
| Body Structure | Sheet Metal Stamping and Welding Structure | – |
| Interior | Cab: Luxury Black Interior | Instrument panel marked with DOT certification logo |
| Doors and Door Pumps | Hinged Driver/Passenger Door | – |
| Side Windows | Electric Glass for Driver/Passenger Door | Glass marked with DOT certification logo |
| Front Windshield, Rear Window Glass | Front Full – view Curved Laminated Windshield, Rear Window Glass | Glass marked with DOT certification logo; Front windshield printed with “A↓ST” in oil |
| Rearview System | Flat – faced Rearview Mirror, MP5 Multimedia Reverse Image | Flat – faced rearview mirror marked with DOT logo |
| Air – conditioning System | Built – in Cooling Air – conditioner as Standard in Driving Area | – |
| Heating System | Built – in PTC Air – conditioner Heating (Defrost Function) as Standard in Driving Area | – |
| Audio – visual, Indicators | MP5 On – board Audio – visual Entertainment System, Backlight for Controls and Indicators Available | – |
| Lamps | Front and Rear Combination Lamps, Daytime Running Lamps, Adjustable Headlamps | Lamps marked with DOT VOR certification logo; All bulbs use bulbs with DOT; All vehicle lamps meet FMVSS requirements |
| Wiper | Electric Wiper | – |
| Seats | 1 + 1; Backrest Adjustment, Front – rear Adjustment, Meeting US Standard Requirements | Seat belts marked with DOT certification logo; Production date needs to be printed on seat belt labels in the format of date/month/year “MFG DATE” |
| Paint | Jade White | – |
| Vehicle Logo | Using CENNTRO Vehicle Logo (Front and Steering Wheel) | – |
| Instrument | ABS Fault Display, Tire Pressure Monitoring Display, CAN Instrument Display | Display BMS, VCU, MCU and instrument version numbers |
| ——END—— | ||
Security Configuration |
||
| Item | Configuration | Remarks |
| Tire Pressure Monitoring | Standard Configuration | – |
| Seat Belt Reminder | Standard Configuration | – |
| Low – speed Alarm | Standard Configuration | – |
| Exit – vehicle Alarm | Standard Configuration | – |
| Front – rear Indication and Side Marker Lights | Standard Configuration | Front – rear indication and side marker lights marked with DOT certification mark |
| ABS, ESC System | Standard Configuration | Raili Kemi |
| Triangular Warning Sign | Standard Configuration | Warning sign marked with DOT certification mark |
| ——END—— | ||
Car Box |
||
| Item | Configuration | Remarks |
| Carriage type | No carriage | – |
| ——END—— | ||
