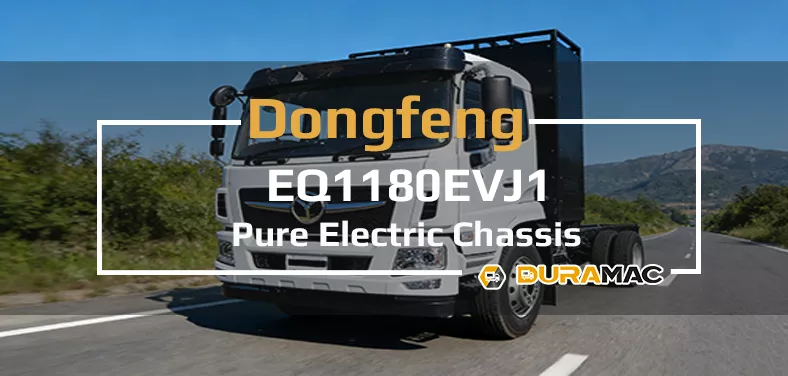

DuraMac Pure Electric Chassis EQ1180EVJ1
Utilizing either a 649.152kWh Anchi or a 751.16kWh Lanjun ultra-large capacity power battery, the vehicle boasts a low failure rate and a comprehensive driving range exceeding 640km or 745km under various road conditions, sufficient for daily urban logistics transport without requiring recharging, thus improving operational efficiency.
The vehicle’s electrical connectors all employ top-tier domestic or imported components to ensure sealing and waterproofing at the connection points, enhancing the high reliability and safety of electrical components.
Equipped with a high-strength DL710 material frame and a mature and stable suspension system, the vehicle offers wide load-bearing capacity, expandability, and high safety.
Technical Specifications
| Size: |
8350*2430*3400/3300/3245/3185mm
|
| Cargo Area Dimensions: | N/A |
| Wheelbase: | 4500mm |
| Front Overhang/Rear Overhang: | 1500/2350mm |
| Approach/Departure Angle: | 15°/14° |
| Curb Weight: | 10800KG |
| Maximum Total Mass: | 18000KG |
| Rated Capacity: | 2,3 |
| Maximum Speed: | 89km/h |
| Track Width: | 1930/1830 mm |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
- Pure Electric Chassis Series
- Power System Parameters
- Standard / Optional Configuration
- Chassis Parameters and Configuration
Model |
Size |
Wheelbase |
Max. Overall Weight |
Max. Speed |
Rated Power |
Passenger Capacity |
| EQ1180EVJ1 | 8350 * 2430 * 3400/3300/3245/3185 mm | 4500mm | 18000KG | 89 km/h | 100 KW | 2,3 |
| EQ1070FTEVJ(N12) | 5998 * 2060 * 2730 mm | 3650mm | 6550KG | 60 km/h | 50 KW | 2 |
| EQ1310GLEVJ | 9040 * 2550 * 3400 mm | 1700+3450+1350mm | 31000KG | 85 km/h | 240 KW | 2 |
| EQ4250GLBEV1 | 7590 * 2559 * 3330 mm | 3900+1350mm | 25000KG | 85 km/h | 215 KW | 2 |
| DFD4250GLBEV | 7590 * 2559 * 3330 mm | 3900+1350mm | 25000KG | 85 km/h | 215 KW | 2 |
| ——END—— | ||||||
Basic information of DuraMac EQ1180EVJ1 motor |
|||
| Motor Model | TZ380XSTQ001, TZ220XY201 | Motor Manufacturer | Puwang, Jingjin |
| Motor Type | Permanent Magnet Synchronous | Motor Rated / Peak Power (kW) | 100/180, 100/200 |
| Motor Rated / Peak Torque (N·m) | 550/1200 | Multi-in-one Controller | Puwang |
| Battery Type | Lithium Iron Phosphate | Battery Manufacturer | Ruipu Lanjun, Anchi |
| Total Battery Capacity (kWh) / Total Voltage (V) | 751.67/579.6, 649.152/579.6 | Driving Range (Constant Speed Method) | 745, 640 |
| ——END—— | |||
Standard / OptionalConfiguration |
||
| Item | Standard Configuration | Optional Configuration |
| Chassis Model | N/A | – |
| EMT System | TS-0412; Gear Ratio: 5.86/3.21/1.7/1 | – |
| Front Axle | 5.5T, φ400×150, Hede | – |
| Rear Axle | 9T, φ400×180, Hede | – |
| Frame | 860 Outer Width, Web Height 250 (Double-layer Girder) | – |
| Suspension | Leaf Spring, 9/10+8 | – |
| Steering | Hydraulic Power Steering | – |
| Braking | Dual-circuit Air Brake, Front Drum & Rear Drum, Komi ABS, Oil-free Piston Air Compressor | – |
| Tires | 11R22.5 18PR, No Spare Tire | – |
| Others | Automatic Adjuster, Brake Shoe Wear Alarm | – |
| ——END—— | ||
Chassis Parameters and Configuration |
||
| Item | Standard Configuration | Optional Configuration |
| Body Structure | Left-hand Drive, Sleeper Cab, Standard Roof | – |
| Interior Trim | Ordinary Interior | – |
| Doors | Stamped Driver’s Door, Stamped Co-driver’s Door | – |
| Side Windows | Electric Lifting | – |
| Windshield | Front Windshield Retaining Strip | – |
| Rearview System | Conventional Rearview Mirror | – |
| Air Conditioning System | Driver Zone Air Conditioning | – |
| Heating System | PTC (Positive Temperature Coefficient Heater) | – |
| Audio-visual System | Radio Player | – |
| Satellite Positioning System | – | – |
| Lamps | Combination Lamps, Daytime Running Lamps, Rear Combination Lamps | – |
| Windshield Wipers | Front Double-arm Windshield Wipers | – |
| Compartment Door | N/A | – |
| Seats | Driver’s Seat, Co-driver’s Seat | – |
| Paint | Plain Color Paint | – |
| Instrument | CAN Instrument | – |
| Combination Switch | – | – |
| Others | “Vehicle Voltage Platform 24V, EV Low-speed Sound Prompter, T-BOX, Handle Above Co-driver’s Seat” | – |
| ——END—— | ||
