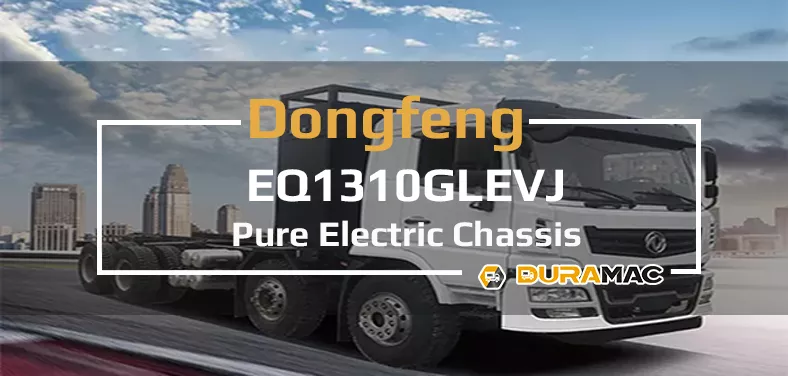

DuraMac Pure Electric Chassis EQ1310GLEVJ
CATL’s 281.92kWh rapid battery swap system offers long driving range and short recharging times, ensuring sustained high-power operation under all operating conditions.
The Tebaka TZ400XSTPG34 drive motor (rated 240 hp, peak 360 hp) and electronic control system deliver industry-leading performance, meeting all operating requirements.
The use of top-tier domestic or imported electrical connectors ensures sealing and waterproofing at the plug-in terminals, ensuring high reliability and safety of the electrical components.
The DL710 high-strength 8+8+6mm frame and a mature and stable suspension system provide wide load expansion and high safety.
The vehicle offers excellent conversion capabilities, making it suitable for trucks, dump trucks, dump-type garbage trucks, concrete mixer trucks, and other vehicles.
Technical Specifications
| Size: | 9040*2550*3400mm |
| Wheelbase: | 1700+3450+1350mm |
| Wheel Track(Front/Rear): | 2036/1860mm |
| Front/Rear Suspension: | 1500/840mm |
| Max. Overall Weight: | 31000KG |
| Max. Speed: | 85km/h |
| Passenger Capacity: | 2 |
| Rated Power: | 240KW |
| Range: | 150km |
| Front Axle: | Dana 6.5T axle |
| Middle/Rear Axle: | Dana 13T axle |
| Transmission: | TBT TS-0425C |
DuraMac
DCEC ISL8.9 series automotive engine is four-strokes engine with 102 mm bore and 120 mm stroke, Equipped with Bosch (or BYC or Weifu) pump. engine comes with turbocharger and Air- Air intercooler. The prime power range is from 269 HP to 394 HP.
Fast Gear
The F6A Series Automated Transmission uses the FAST automatic transmission, has six front gears, the transmission ratio step arrangement is reasonable, has very outstanding fuel economy. Adopt hydraulic automatic transmission. The F6A Series Automated Transmission has six gears, each with a different reduction ratio.
EV Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment.
DANA Axle
Applying the advanced technology of DANA with high efficiency, fuel economy, strong load torque, low noise,high reliability, lower procurement cost, low repair cost and lower maintenance cost.
Datong Gear
The Datong HW25712XSJ Heavy Manual No-Sync Gearbox has a torque of 2500 N.m, a gear ratio range of 14.941-1, an oil capacity of 13 L (13.5 L when equipped with a power take-off), an overall length of 993 mm, and a weight of 428 kg.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
Crane Trucks
The DFZ5258JSQSZ6D truck crane is a powerful and versatile vehicle designed for efficient lifting and transportation tasks. Equipped with a YCS06300-61 engine and a Shaanxi Auto Fast gear : 10JS120TA high-low gear with synchronizer、PTO gearbox, it provides strong and stable power for demanding operations.
- Pure Electric Chassis Series
- Power System Parameters
- Standard / Optional Configuration
- Chassis Parameters and Configuration
Model |
Size |
Wheelbase |
Max. Overall Weight |
Max. Speed |
Rated Power |
Passenger Capacity |
| EQ1310GLEVJ | 9040 * 2550 * 3400 mm | 1700+3450+1350mm | 31000KG | 85 km/h | 240 KW | 2 |
| EQ4250GLBEV1 | 7590 * 2559 * 3330 mm | 3900+1350mm | 25000KG | 85 km/h | 215 KW | 2 |
| EQ1070FTEVJ(N12) | 5998 * 2060 * 2730 mm | 3650mm | 6550KG | 60 km/h | 50 KW | 2 |
| EQ1180EVJ1 | 8350 * 2430 * 3400/3300/3245/3185 mm | 4500mm | 18000KG | 89 km/h | 100 KW | 2,3 |
| DFD4250GLBEV | 7590 * 2559 * 3330 mm | 3900+1350mm | 25000KG | 85 km/h | 215 KW | 2 |
| ——END—— | ||||||
Basic information of DuraMac EQ1310GLEVJ motor |
|||
| Motor Model | TZ400XSTPG34 | Motor Manufacturer | Top – Best Power Technology Co., Ltd. |
| Position/Fuel Type | Mid-mounted/Battery Swap Type | Motor Type | Permanent Magnet Synchronous Motor |
| Rated/Peak Power of Motor (kw) | 240/360 | Rated/Peak Torque (N.m) | 1400/2500 |
| Total Battery Capacity (kWh) | CATL 281.92 (Battery swap instead) | Driving Range (40km/h Constant Speed Method) | 150Km |
| Vehicle Announcement and Batch | 348 | Recommendation/Exemption Catalogue | —— |
| National Subsidy Level Amount (10,000 yuan) | —— | ||
| ——END—— | |||
Standard / Optional Configuration |
||
| Item | Standard Configuration | Optional Configuration |
| Frame | DL710, 860mm width × 300mm height × thickness (8 + 4) | – |
| Front/Second Axle | Dongfeng Dana Axle 6.5T | HanDe Axle 6.5T (Wheel End Waterproof)/HanDe Axle 9T (Wheel End Waterproof) |
| Middle/Rear Axle | Dongfeng Dana Axle 13T | HanDe Axle 13T (425X (Wheel End Waterproof))/HanDe Axle 16T (300X (Wheel End Waterproof)) |
| Transmission | Topgear TS – 0425C | – |
| Suspension | Multi – leaf spring: 9/9/10 | – |
| Steering | Hydraulic power steering | – |
| Braking | Air brake, dryer, condenser, ABS, automatic adjusting arm, wear alarm | – |
| Tire | 11.00R20 18PR (No spare tire) | 12.00R20 18PR |
| Air Compressor | Oil – free piston | – |
| Others | Electronic fan, PTO (Power Take – Off) | – |
| ——END—— | ||
Chassis parameters and configuration |
||
| Item | Standard Configuration | Optional Configuration |
| Body Structure | Fully welded steel positive and TJ6200 single – berth standard – roof cab | T719 single – berth standard – roof cab |
| Body Mounting Flip | Semi – floating front and rear suspension with mechanical shock absorption, electric hydraulic flip | Full – floating rear suspension with airbag shock absorption |
| Interior Decoration | Middle – and low – layer composite materials | – |
| Central Control and Door Locks | Central door lock | – |
| Side Windows | Electric lifting | – |
| Windshield | Front windshield with interlayer adhesive | – |
| Rearview System | Inner rearview mirror, steel – framed asymmetric manual – lever type rearview mirror | – |
| Air – conditioning System | Cab interior heating and cooling air – conditioner | Dongfeng Payne roof – mounted air – conditioner/Zhenghe 200G cab air – conditioner |
| Heating System | Cab interior heating and cooling air – conditioner | – |
| Defroster | Instrument panel blower structure defroster | – |
| Audio – visual System | MP3 player | – |
| Lamps | Combined front headlamps (with light adjustment device) | – |
| Wiper | Counter – scraping type electric wiper | – |
| Seats | 2 – 3 seats, mechanical shock – absorbing driver’s seat | Airbag shock – absorbing driver’s seat |
| Paint | Domestic plain paint | Metal paint |
| Others | Air horn, mechanical power – off switch, OBD socket, new energy remote terminal T – BOX, Beidou satellite positioning driving recorder with printing function. | Reverse monitoring system, ETC on – board device |
| ——END—— | ||
